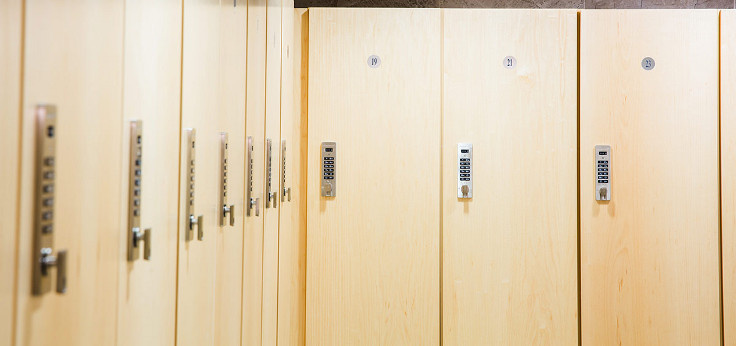

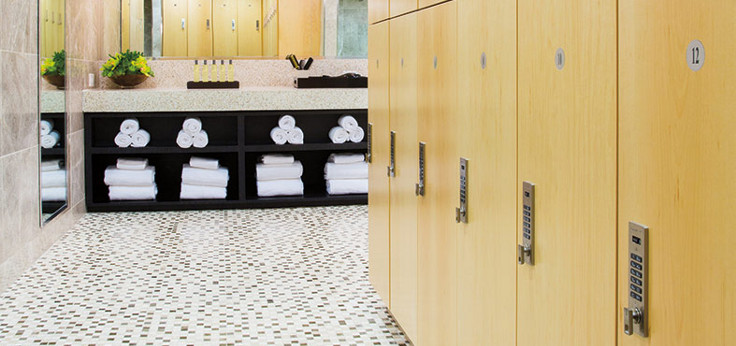

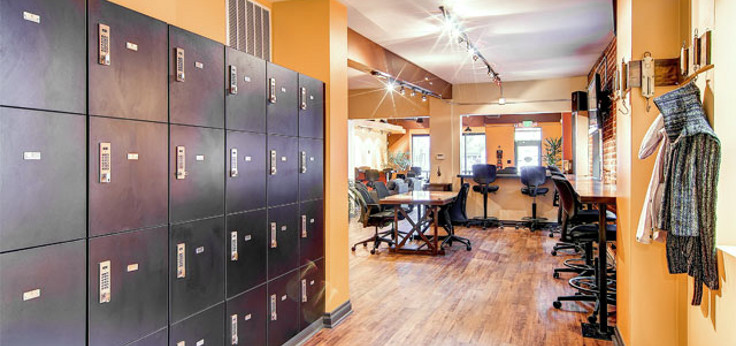

Digilock Keypad Cam Locks provide locker security with the entry of a 4-digit user code and rotation of the handle.
Digilock Advanced Security function by entry of a 4-digit code. The interface also contains a key slot to operate locks with an Accessibility User Key. Lock systems are easily managed with a Programming Key unique to the lock system, or any Manager Bypass Key. Digilock features:
- All metal lock housing with integral turn handle
- Vertical body orientation
- Visual and audible indicators
- Powered by 3 premium AA batteries
- 3-5 year battery life
- 2-year product warranty
Digilock Keypad Cam Lock Resources
Security
Advanced
Features a cam locking mechanism that engages the locker frame by manual operation of the turn handle.
Use / Function
Assigned Use
In assigned use functionality, a 4-digit User Code is assigned to operate the lock. To unlock, the user enters the assigned User Code then rotates the handle to the unlocked position. To lock, the user closes the door then rotates the handle to the locked position. Management staff operates the lock with either the Programming Key unique to the lock system, or any registered Manager Bypass Key. In assigned use functionality, the locks have a green LED usage indicator.
Shared Use
In shared use functionality, the user chooses any available locker, enters a self-selected 4-digit code, then rotates the handle to the locked position. To unlock, the user enters the same self-selected code, then rotates the handle to the unlocked position. Once unlocked, the locker is available for a different user. Management staff operates the lock with either the Programming Key unique to the lock system, or any registered Manager Bypass Key. In shared use functionality, the locks have a red LED usage indicator.
INSTALLATION / MOUNTING
Recessed Mount
Keypad Cam Locks are only available in a recess mount installation where the front and rear units are joined together by a battery cable. The front unit of the lock sits in a semi-flush space routed on the door.
Keys / Lock Management
Programming Key
- Initializes new locks
- Registers Manager Bypass Keys
- Provides lock access in case of forgotten/lost user credential (code or key)
- Allows management audit/inspection
- Provides external power in case of battery failure
- The Programming Key is yellow
Manager Bypass Key
- Assigns User Code and User Key on assigned use locks
- Provides lock access in case of forgotten/lost user credential (code or key)
- Allows management audit/inspection
- Provides external power in case of battery failure
- The Manager Bypass Key is black
Accessibility User Key
- Operates the lock instead of using a code
- The Accessibility User Key is blue
- All Digilock models can be operated with an Accessibility User Key to meet compliance guidelines. The Accessibility User Key is fully compliant with the Americans with Disabilities Act (ADA) guidelines set by the US Access Board. Digilock recommends obtaining Accessibility User Keys for 5% of the total number of installed locks.
